Stud Weld Shear Connectors: A Fundamental Element of Structural Strength
In modern construction projects, ensuring effective composite action between steel structures and reinforced concrete systems is essential for structural performance and safety. One of the most effective solutions for achieving this is the stud weld shear connector.
A stud weld shear connector is welded directly onto steel beams and becomes embedded in the concrete during casting. This creates a strong bond between steel and concrete, allowing them to work together as a single structural system. As a result, the load-bearing capacity, stiffness, and durability of the structure are significantly improved.
These steel connection elements are widely used in bridges, industrial facilities, high-rise buildings, power plants, and many other large-scale construction projects.
How Is a Stud Weld Shear Connector Installed?
Stud welding is typically performed using specialized stud welding equipment and follows these steps:
Surface Preparation
The steel surface is cleaned thoroughly to remove rust, oil, paint, and other contaminants that could affect weld quality.
Positioning the Stud
The stud is placed in the welding gun and positioned accurately on the steel surface.
Welding Process
An electric arc is generated, creating a metallurgical bond between the stud and the steel member within milliseconds.
Ceramic Ferrule Protection
A ceramic ferrule surrounds the weld area, protecting the molten metal and ensuring the formation of a high-quality weld pool.
Cooling and Inspection
After welding, the ferrule is removed and the connection is inspected to verify weld quality and integrity.
This process minimizes installation errors while maximizing structural performance and reliability.
Common Applications of Stud Weld Shear Connectors
Stud connectors are widely used in various industries and construction sectors, including:
- Bridge and viaduct construction
- Industrial facilities and manufacturing plants
- High-rise residential and commercial buildings
- Steel platform systems
- Wind turbine and energy projects
- Infrastructure and metro systems
- Composite steel-concrete floor structures
These applications benefit from the strong and durable connection created between steel and concrete elements.
Advantages of Stud Weld Shear Connectors
Enable Composite Action
Stud connectors allow steel and concrete to work together efficiently, improving overall structural performance.
High Shear and Tensile Resistance
They provide excellent resistance to both shear and tensile forces, making them suitable for demanding structural applications.
Fast and Reliable Installation
Stud welding is a rapid process that increases productivity while maintaining consistent quality.
Improved Structural Safety
By enhancing load transfer and connection strength, stud connectors contribute to safer and more reliable structures.
Enhanced Seismic Performance
Composite systems utilizing stud connectors often perform better under seismic loading conditions.
Long-Term Durability
Properly installed stud connectors maintain structural integrity for many years, even under challenging service conditions.
Why Are Stud Weld Shear Connectors Preferred?
- They meet the complex engineering requirements of modern structures.
- They play a vital role in composite floor and deck systems.
- They provide speed and reliability in prefabricated construction.
- They offer greater efficiency and durability than many traditional connection methods.
- They support higher load capacities and improved structural stability.
Key Considerations When Selecting Stud Connectors
When choosing stud weld shear connectors, the following factors should be considered:
- Material quality and manufacturing standards
- Appropriate diameter and length for the project
- Compatibility with stud welding equipment
- Compliance with relevant standards such as EN ISO 13918 and ISO 14555
- Technical support and engineering expertise provided by the manufacturer
Selecting the correct connector is critical for achieving optimal structural performance.
Complete Solutions for Stud Welding Systems
A high-quality stud connector delivers maximum performance when combined with suitable welding equipment, ceramic ferrules, and proper installation techniques. For this reason, stud connectors, welding machines, ferrules, and application equipment should be evaluated as part of a complete system rather than as individual components.
Frequently Asked Questions (FAQ)
What is the purpose of a stud weld shear connector?
It transfers loads between steel and concrete elements while improving structural integrity and composite action.
Where are stud weld shear connectors used?
They are commonly used in bridges, industrial facilities, high-rise buildings, infrastructure projects, energy facilities, and composite floor systems.
Does installation require specialized expertise?
Yes. Stud welding should be performed by trained personnel using professional equipment.

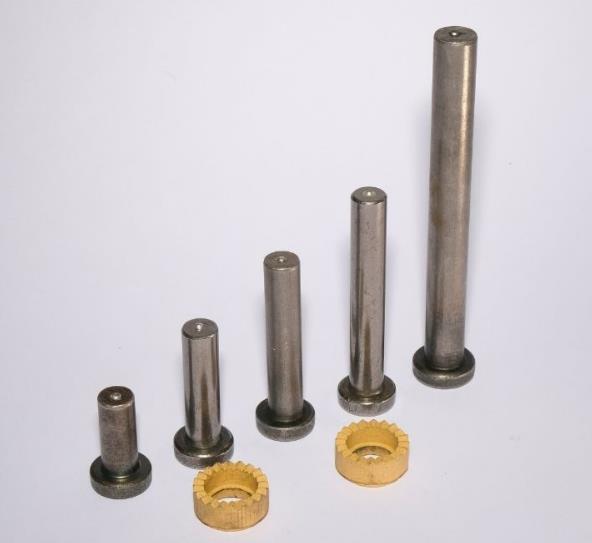

Are different sizes available for different projects?
Yes. Stud connectors are manufactured in a wide range of diameters and lengths to meet specific project requirements.
